HP POS

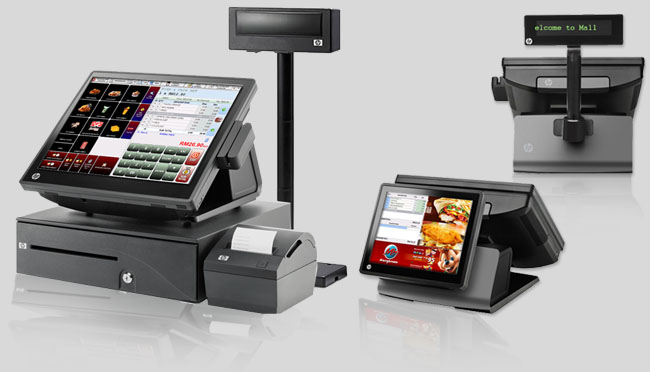

HP RP7 Retail System Model 7800
Operating System | : | Windows Embedded POS Ready 2009 |
Processor | : | 2nd Generation Intel® Core™ i5 and i3 Processors, Intel® Pentium® Processors, Intel® Celeron® Processors (Select processors support Intel® VPro™ Technology) |
Memory | : | Four DIMMs, dual-channel; Standard non-ECC DDR3 PC3-10600 (1333 MHz) and PC3-8500 (1066 MHz) memory; supports up to 16GB. NOTE: Dual channel memory configurations supported for enhanced performance. When memory is labeled DDR 800 MHz, it will clock down to run at 667 MHz system speed |
Internal Drive | : | SATA SSD ; From: 32 GB Up to: 256 GB |
Graphics | : | Integrated Intel HD Graphics |
Display | : | Choice of one associate-facing touchscreen display includes 15" Resistive (1024 x 768 resolution), 15" Projected Capacitive (1024 x 768 resolution), or 17" Projected Capacitive (1280 x 1024 resolution). Optional customer facing display includes HP RP7 VFD Display or the HP RP7 10.4-inch. |
Ports | : | 6 USB 2.0 2 12V powered USB ; ; 1 24V powered USB ; 1 USB in lockable compartment ; 1 RJ-12 (cash drawer) ; 2 RS-232 (powered) ; 1 parallel ; 1 PS/2 ; 1 DVI-I ; 1 RJ-45 ; 1 audio in ; 1 audio out ; 1 DC in ; 1 DC out ; 4 USB connectors (for select HP integrated peripherals) |
Audio Visual | : | Rear-line input (supports microphone or line input), lineout; line-out used if CFD installed; High Definition Audio with Realtek ALC261 codec (all ports are stereo); SRS Premium Sound audio management technology; Multi-streaming capable; Dual Internal Speakers (standard) |
Receipt Printer | : | HP Thermal Receipt Printer |
Barcode Scanner | : | HP USB Barcode Scanner |
HP AP5000 Retail System
Operating System | : | Windows Embedded POS Ready 2009 |
Processor | : | Intel Celeron 440 Intel Core 2 Duo E7400 |
Memory | : | Dual-channel DDR2 up to 4GB DIMMS, 2 slots, supports 667/800 MHz; most configurations ship with 1 x 2GB or 1 x 1GB + 1 x 2GB (3GB) |
Hard Disk | : | 160GB |
Graphics | : | Integrated Intel Graphics Media Accelerator 3000 |
Display VFD | : | 2 line x 20 character display (40 characters total), RS232 interface, DC5V (COM port set to 5 V at factory in BIOS setup). Supports complex character set, control commands, user-defined fonts and international fonts. Display pitch adjustment only (10deg to 90deg), no height adjustment. |
Audio/Visual | : | Intel integrated high-definition audio with 2-channel Via VT1708S codec |
Magnetic stripe reader (MSR) | : | Multi-channel, fully integrated MSR, confirms to ANSI/ISO 7810, 7811 1/5, 7812, and 7813; supports OPOS driver layer; 3 tracks: IATA, ABA, THRIFT; bi-directional swipe; LED indicates status of reader |
Storage | : | Hard Drive - (2) 2.5 inch internal hard drive bays: 160GB 2.5 inch (select models), 64GB solid sate 2.5 (some models) inch; Optical Drive - External USB only (not included) |
POS Keyboard | : | PS/2 or USB supported |
Receipt Printer | : | HP Thermal Receipt Printer |
Barcode Scanner | : | HP USB Barcode Scanner |
HP RP3 Retail System Model 3100
Operating System | : | Windows Embedded POS Ready 2009 |
Processor | : | Intel Celeron Processor 807UE 1.0 GHz, 1MB cache, single-core |
Memory | : | Dual-channel DDR2 up to 4GB DIMMS, 2 slots, supports 667/800 MHz; most configurations ship with 1 x 2GB or 1 x 1GB + 1 x 2GB (3GB) |
Hard Disk | : | 160GB |
Graphics | : | • Intel HD graphics (integrated) • HP DisplayPort to DVI-D adapter • HP DisplayPort to HDMI adapter HP DisplayPort to VGA adapter |
Display | : | User facing 15" diagonal TFT dual-bulb display. IP55(Touchscreen display only) |
Network Interface Communications | : | • Broadcom BCM57788 GbE network connection (integrated) • HP WLAN 802.11 a/b/g/n 2 x 2 DB MCard BT (optional) • HP WLAN 802.11 b/g/n 1 x 1 MCard (optional) |
Controllers | : | • Hard drive SATA : Supports up to SATA 6.0 Gb/s • SATA interfaces : One SATA 3.0 • Host SATA : Advanced Host Controller Interface (AHCI) Revision 1.2 |
Input/output Devices | : | • HP PS/2 standard keyboard • HP USB standard keyboard • HP USB and PS/2 washable keyboard • HP PS/2 optical mouse • HP USB optical mouse • HP USB laser mouse • HP USB and PS/2 washable mouse |
